MPV Technical Documents and Specifications
Listed below are downloadable technical documents for the MPV series in .PDF format.
MPV Overview
Hydraulic Systems Flow Meters are designed to provide correct amount of fluids to the actuator, eliminating catastrophic failures and severe machinery damages.
MPV Operation Manual
Marine fuel flow meters accurately measure the consumption of your ships diesel fuel or bunker oil, which could be the difference between a profitable voyage or a costly one.

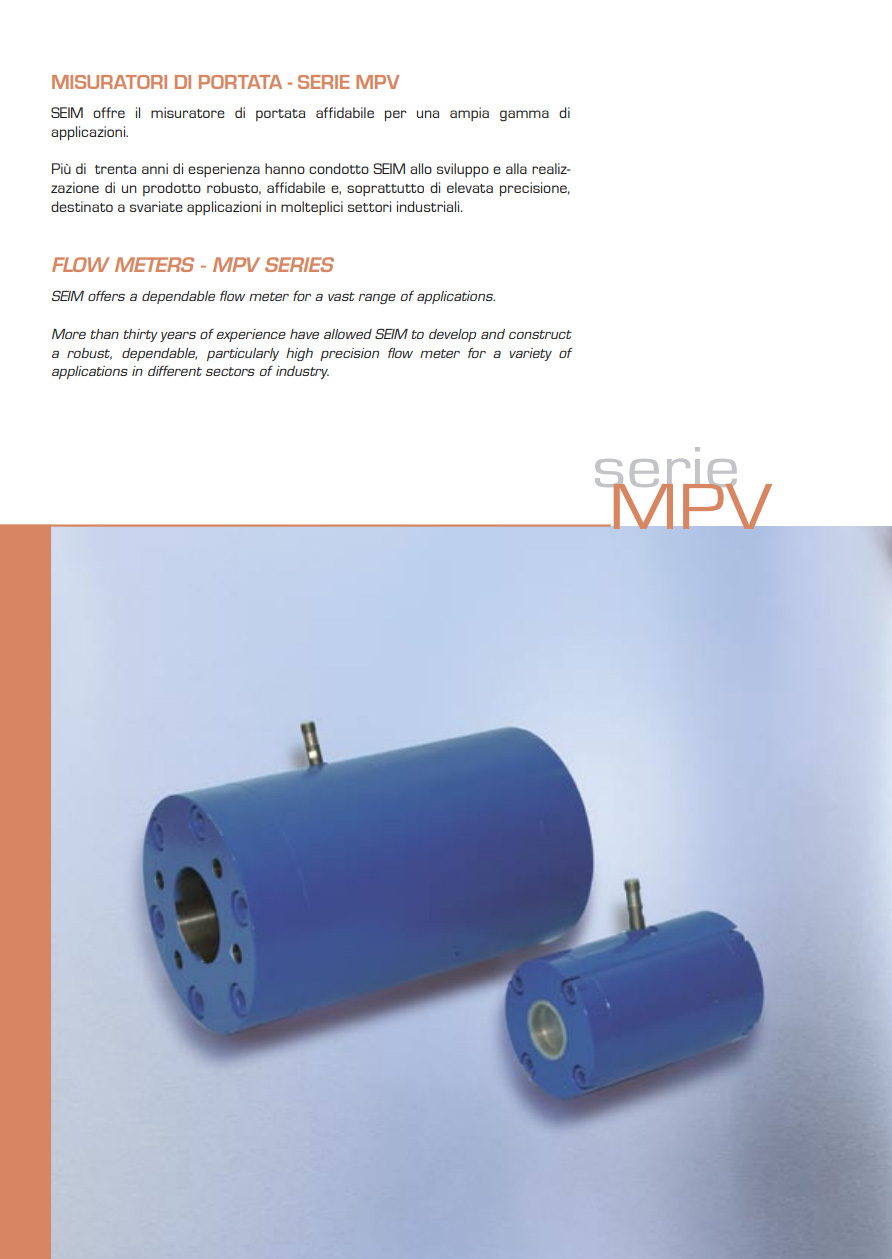

MPV Technical Data
Oil flow meter allows for both accurate bi-directional flow readings and unparalleled accuracy for viscous fluids, cost savings for the product manufacturer.
MPV Dimensions
| Model | Diameter - A | Length - B | C - Connection Options | Unit Weight |
|---|---|---|---|---|
| MPV 025 | 3.54" | 7.95" | 3/4" BSP & SAE 1" | 11.02 Lbs |
| MPV 040 | 4.05" | 8.26" | 1-1/4" BSP & SAE 1-1/2" | 17.5 Lbs |
| MPV 060 | 7.08 | 11.81" | SAE 3" | 66 Lbs |
